Qumat®-Q401-EPC
Übersicht
Protective gloves and other personal protective equipment are subject to continuous quality control. The quality of this equipment and its classification into different protection classes are regulated by standards. The relevant standards are DIN EN ISO 374, DIN EN ISO 16523, DIN EN ISO 6529, F-739 as well as the Qumat®-Q401-EPC and the permeation cell NW50, which were developed in accordance with these standards.
The concentration of the chemical as a function of time is continuously recorded. As soon as the concentration exceeds a predefined value, this is called a breakthrough. From this point on, the PPE no longer protects the user from the chemical being tested. According to the standard, the breakthrough is defined with a permeation rate > 1 µg min-1 cm-2. The breakthrough is automatically detected by the Qumat®-Q401-EPC.
Advantages of the Qumat®-Q401-EPC
Advantages of the Qumat®-Q401-EPC
The Qumat®-Q401-EPC analyzer is used to test the chemical resistance of chemical protective gloves and clothing. An analyzer (FID or FPD) is used to measure the breakthrough of test chemicals. Measuring lines are available for three permeation measuring cells according to DIN EN 374, DIN EN 6529, EN 16523 or F-739. The Qumat®-Q401-EPC glove tester is available in two versions and differs only in its detector. The Qumat®-Q401-EPC can be supplied with FID or with FID and FPD.
- Determination of chemical resistance according to standards: DIN EN ISO 374, DIN EN ISO 16523, DIN EN ISO 6529 and F-739
- LABC permeation cell developed and built in compliance with the standards DIN EN ISO 374, DIN EN ISO 16523, DIN EN ISO 6529 and F-739
- For PPE test at 23°C+-1 according to standard and further tests up to 35°C
- Economical consumption of permeation chemicals, as LABC permeation cells are used in an upright position. Approx. 10ml of liquid is required per permeation measurement
- Gaseous permeation chemicals can also be measured with a separate attachment
- Our permeation products are used worldwide
- LABC permeation cells and permeation testers are exclusively manufactured in Germany
- On request, we develop and produce permeation test chambers according to customer requirements as special designs
- The permeation test equipment required for each permeation chemical is listed in the normative annexes
LABC-Labortechnik has developed various products for permeation measurement in laboratories since 1988. Our offer includes products for measurements in the collection medium water as well as in the gas flow. As detectors we offer FPD, FID, PID electrodes, as well as pH electrodes, conductivity electrodes and redox electrodes.
The informative annex to standards 374 and 16523 lists permeation chemicals and the preferred analyzer. We have assigned our suitable test device to each test chemical according to the standard.
Measuring devices in gas flow
Measuring devices in gas flow
Qumat®-Q401-EPC and the PERMOBIL mobile permeation test stand test in gas flow with a detector. This means that the collection medium is a gas. Here you have the option of using air or nitrogen. The measurements in the gas flow are carried out in an open loop system.
Workplace with liquid collection medium
We have developed the Fluid-PermCell NW50-liquid for liquid collection media. The collection medium is predominantly deionized water. The permeation measurements take place in a closed loop system.
Qumat®-Q401-EPC
Qumat®-Q401-EPC
The Qumat®-Q401-EPC analyzer is used to measure the permeation rate of chemical protective gloves and clothing. The analyzer measures the breakthrough of test chemicals in three permeation measuring cells according to DIN EN 374, DIN EN 6529, EN 16523 or F-739. The Qumat®-Q401-EPC glove tester is available in two versions and differs only in its detector. The Qumat®-Q401-EPC can be supplied with FID or with FID and FPD. The overview of detectable chemicals provides information on which detector is suitable for your application.

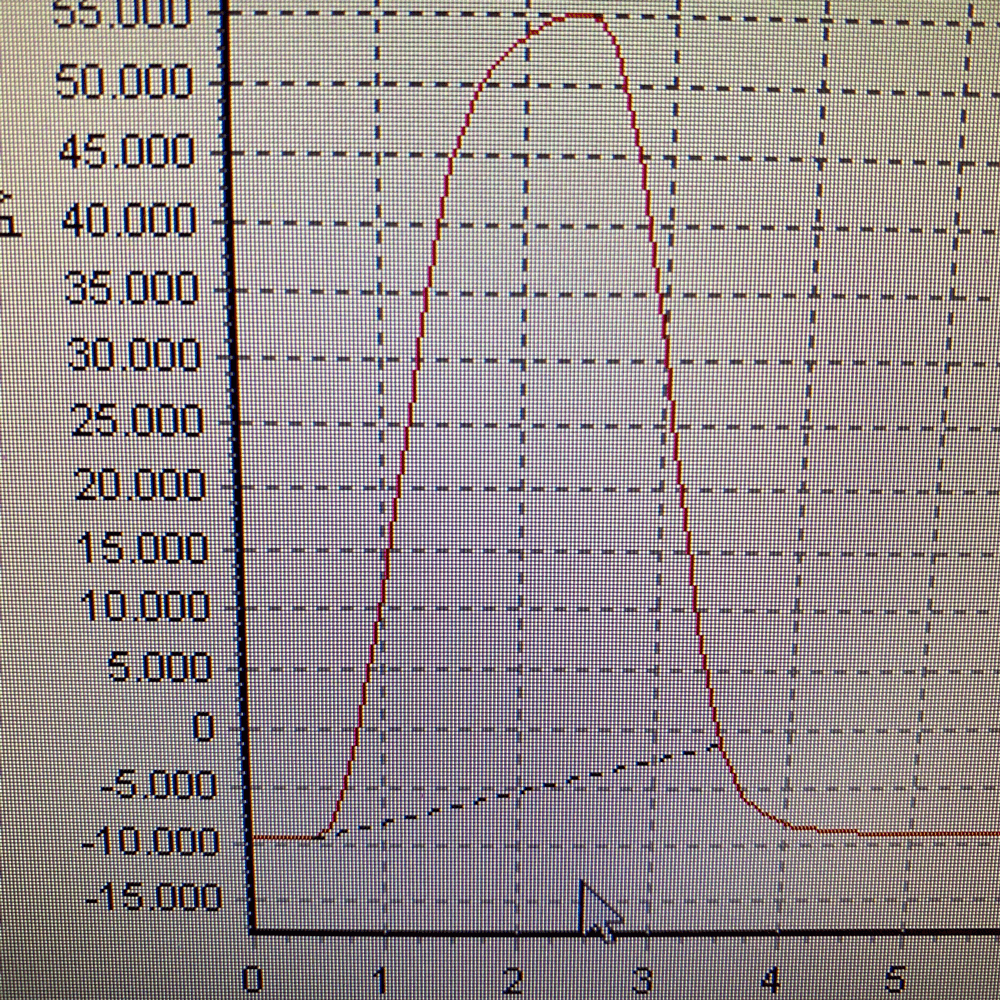

Gloves are clamped into the permeation measuring cells, filled on one side with the liquid test substance to be examined and continuously flown through from the other side with a gaseous collection medium. These three defined gas streams are analyzed sequentially for the volatile detectable test substance. The results are documented in tabular form. In addition, the temperature and airflow are recorded for each measurement.
If a test substance with a permeation rate > 1 µg min-1 cm-2 passes through the test specimen, a breakdown according to DIN EN 374-3 and EN 16523-1 is present.
Features Qumat®-Q401-EPC FID andFID/FPD
Features Qumat®-Q401-EPC FID andFID/FPD
Detector |
FID |
FID/FPD |
|---|---|---|
| test substances containing hydrocarbons | for P- and S-containing test substances | |
| Part number | 170-0328968 | 170-0360517 |
| Permeation cell | 3x permeation cell NW50 | 3x permeation cell NW50 |
| Measuring lines | up to three permeation cells can be measured | up to three permeation cells can be measured |
| the zero gas, a reference gas (isobutane 100ppm),reference gas in a permeation cell | the zero gas, a reference gas (THT or trimethylphosphite),reference gas in a permeation cell | |
| Gas required | Air, hydrogen, nitrogen optional | Air, hydrogen, nitrogen optional |
| Reference gas / Calibration gas | isoButane 100ppm | THT and trimethyl phosphite |
| Measuring circuits | Use of up to 3 measuring cells | Use of up to 3 measuring cells |
| Temperature range | Temperatures of 23 °C ±1 °C or 33 °C ±1 °C as well as user-defined temperature ranges | Temperatures of 23 °C ±1 °C or 33 °C ±1 °C as well as user-defined temperature ranges |
| Temperature is stored | Temperature is stored | |
| Gas flow | Integrated flowmeter for flow measurement at every measuring cycle | Integrated flowmeter for flow measurement at every measuring cycle |
| Software | Evaluation program that generates Excel-compatible data. | Evaluation program that generates Excel-compatible data. |
| Requirement: PC with USB and Windows 7 or higher | Prerequisite: PC with USB and Windows 7 or higher |
Permeation cell NW50
Permeation cell NW50
Designed for liquid or gaseous test chemicals and gaseous collection media. Permeation cell NW50 according to EN 16523-1 (replaces EN374-3) for testing PPE films such as protective gloves or protective clothing to measure the permeability of the test substances to the samples.

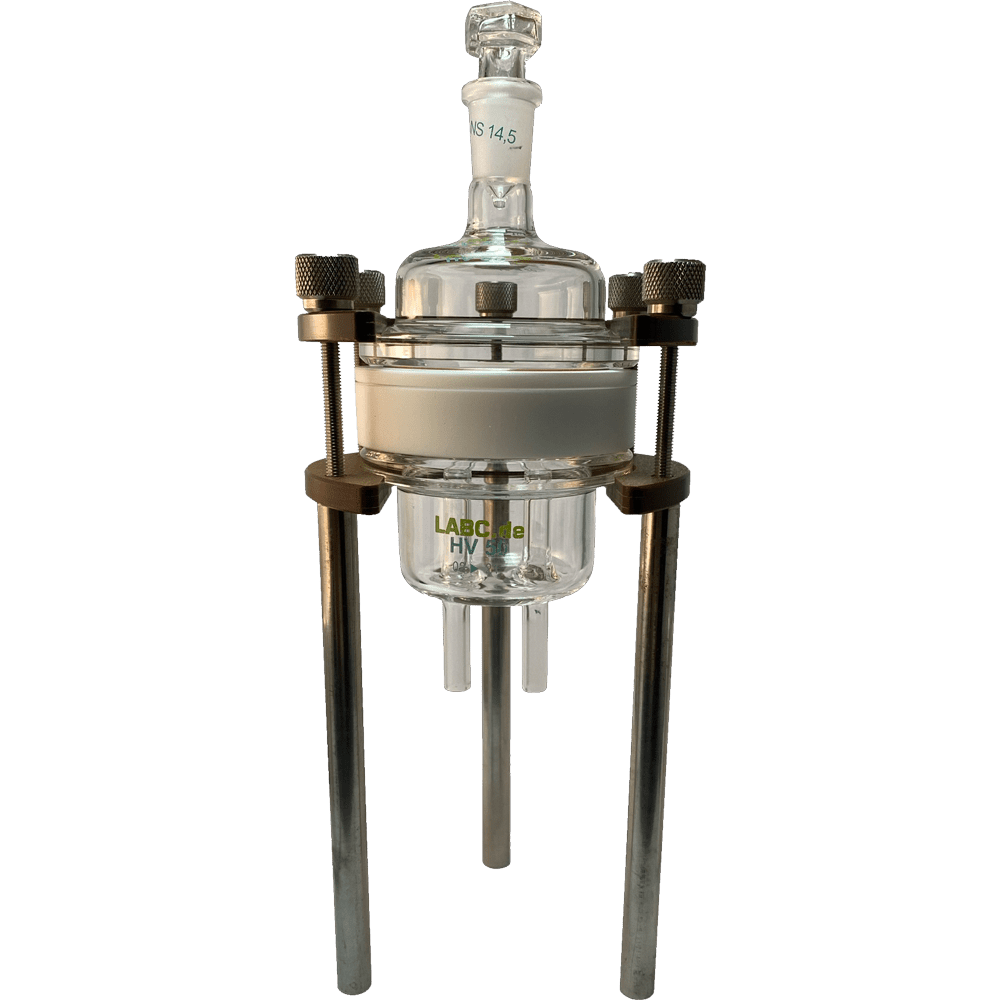

The permeation cell parts are held upright by a tripod without support. The PTFE holder for gloves < 0.5 mm is placed in between. Made by German glassblowers analogous to the standards.
