Microliter vials

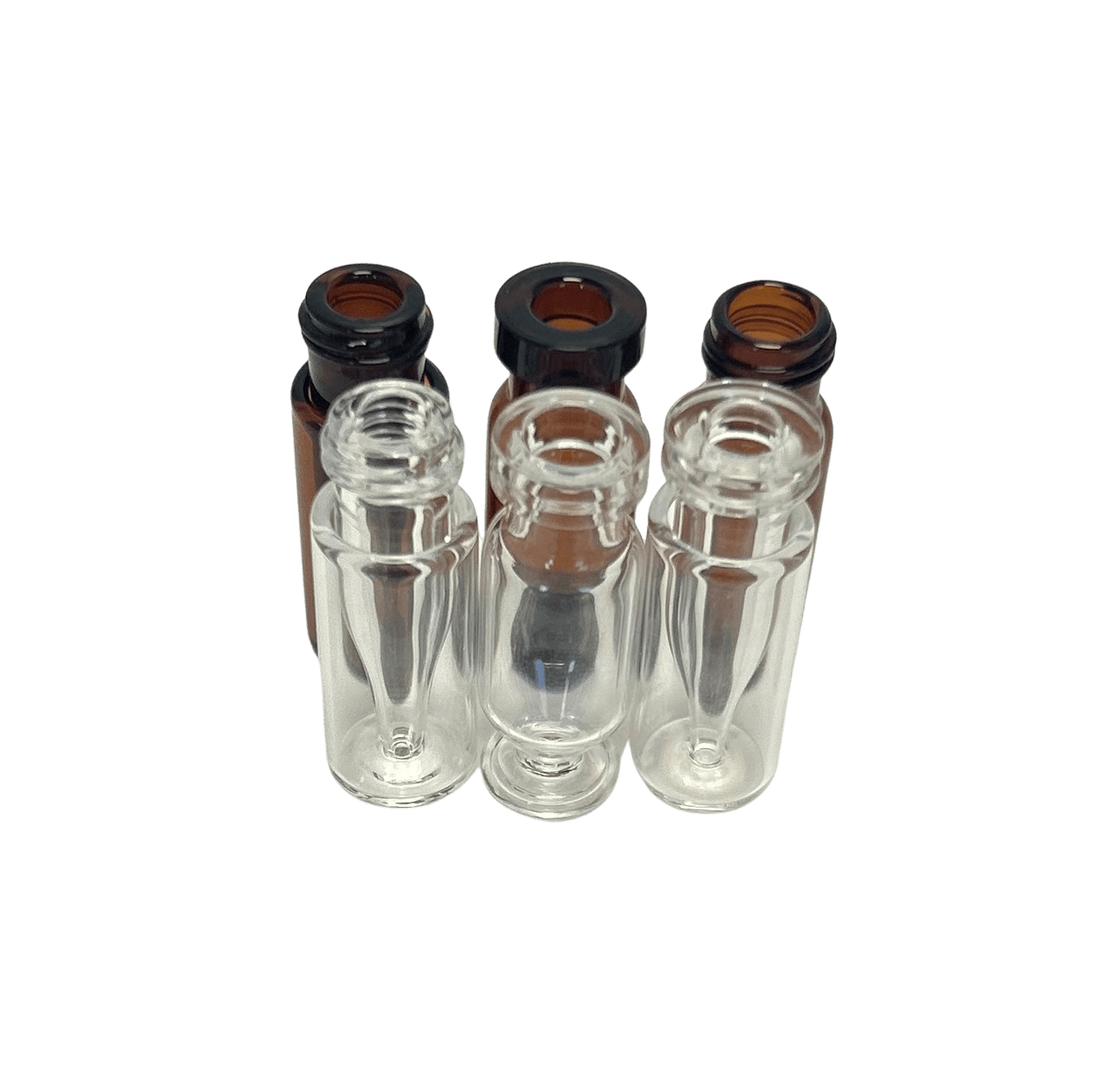

Microlitre vials: The absolute special bottles for precious or small sample quantities. Samples in the microliter range are difficult to handle with conventional vials, as the remaining volume in the classic 2 ml vial is too large. Inserts can be used as an alternative, but they often do not fit perfectly into the bottle, have limited sealing properties, and must be inserted manually.

The microliter vials range from LABC-Labortechnik offers an excellent solution here. Our microliter vials are precisely manufactured in the classic 32x12mm design, making them compatible with all common GC and HPLC systems. The microliter vials stand by themselves and ensure that the residual volume in the vial remains minimal.

We produce exclusively “Made in Germany”.

iV2µ-Vial - Insert - Vial

Slim pull-out direct seal insert, ideal for volatile samples and Microreactions. The iV2µ-Vial is Agilent compatible and has a volume of 250 µl. The insert is sealed directly at the cap, therefore the sample cannot penetrate into the space between vial and insert. Furthermore, the iV2µ-Vial is ideal for micro-reactions and for volatile samples as well as lyophilization. The iV2µ-Vial has a long tapered insert, is also suitable for syringe needles with side hole and has a very small dead volume (< 5µl).

Filling volume: 250 μl
optimized volume: 25 μl
Minimum volume: 8 μl

Item no:	Thread	KG/BG:	Volume:	Rest:	Height:	Ø:
120-0455831	ND9	KG	250 μl	8 μl	32 mm	12 mm
120-0455763	ND9	BG	250 μl	8 μl	32 mm	12 mm
120-0455299	ND11 Crimp	KG	250 μl	8 μl	32 mm	12 mm
120-0408066	ND11 Crimp	BG	250 μl	8 μl	32 mm	12 mm
120-0455459	ND11 Snap	KG	250 μl	8 μl	32 mm	12 mm
120-0455381	ND11 Snap	BG	250 μl	8 μl	32 mm	12 mm

Cross reference list for iV2µ-Vial - Insert - Vial

Part no.:	OEM number:
120-0455831	8004-HP-H/iV2µ
120-0455763	8004-HP-D/iV2µ
120-0455299	8002-CV-H/iV2µ
120-0408066	8002-CV-D/iV2µ
120-0455459	8002-SC-H/iV2µ
120-0455381	8002SC-D/iV2µ

µ-Vial - with conical 350 µl insert

The µ-Vial with integrated 350 µl insert. Type i3µ is the first microvial from GTG Glastechnik Gräfenroda. The melted insert forms a common base with the outer vial.
The total volume is 350 µl and the base volume is 10 µl.

Filling volume: 350 μl
optimized volume: 15 μl
Minimum volume: 10 μl

Item no:	KG/BG:	Thread	Volume:	Rest:	Height:	Ø:
120-0455824	KG	ND9	350 μl	10 μl	32 mm	12 mm
120-0455756	BG	ND9	350 μl	10 μl	32 mm	12 mm
120-0455282	KG	ND11 Crimp	350 μl	10 μl	32 mm	12 mm
120-0455206	BG	ND11 Crimp	350 μl	10 μl	32 mm	12 mm
120-0455442	KG	ND11 Snap	350 μl	10 μl	32 mm	12 mm
120-0455374	BG	ND11 Snap	350 μl	10 μl	32 mm	12 mm

Cross reference list µ-Vial - with conical 350 µl insert

Part no.:	OEM number:	Agilent number:
120-0455824	8004-HP-H/I3µ	5188-6591
120-0455756	8004-HP-D/i3µ	5188-6592
120-0455282	8002-CV-H/i3µ	9301-1388
120-0455213	8002-CV-D/i3µ	5188-6572
120-0455442	8002-SC-H/i3µ	5188-6593
120-0455374	8002-SC-D/i3µ	5188-6594

Verpackt sind die Flaschen zu 100 Stück in einer PP-Box

"Vasen-Vial“ 1,2 ml Vµ-Vial

The Väschen-vial or Vµ-Vial can hold a volume of up to 1.2 ml. In the foot area it is 15 µl. Compared to other micorovials, the Vµ-Vial is inexpensive and is recommended for all work up to a residual volume of 15 µl.
Väschen are patented by GTG Glastechnik Gräfenroda, are manufactured in Germany and both the shape and the production process are protected by a European patent.

The Vµ-Vial is Agilent compatible with a 9 mm thread and integrated residual drain.

small residual volume (dead volume)
stands independently
corresponds to 12 x 32 mm standard

Item no:	Thread	KG/BG:	Volume:	Rest:	Height:	Ø:
120-0455916	ND8	KG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455886	ND8	BG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455855	ND9	KG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455787	ND9	BG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455312	ND11 Crimp	KG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455244	ND11 Crimp	BG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455459	ND11 Snap	KG	1,2 ml	< 15 μl	32 mm	12 mm
120-0455381	ND11 Snap	BG	1,2 ml	< 15 μl	32 mm	12 mm

Cross reference list for "Vasen-Vial“ 1,2 ml Vµ-Vial

Item no:	Agilent:	MN:	Th. Geyer:	OEM:
120-0455916				8004-NM-H/V15µ
120-0455886				8004-NM-D/V15µ
120-0455855	5184-3550	702088	7648516	8004-HP-H/V15µ
120-0455787	5184-3554		7648515	8004-HP-D/V15µ
120-0455312	5184-3551	702141	7648512	8002-CV-H/V15µ
120-0455244	5184-3555			8002-CV-D/V15µ
120-0455459				8002-SC-H/iV2µ
120-0455381				8002-SC-D/iV2µ
