ND20 aluminum flare caps Butyl shaped washer
The molded butyl discs are cleaner and denser compared to a conventional punched disc. In comparison, pure butyl is an inexpensive septum. Due to the lack of PTFE lamination, the closure is only suitable for non-critical analyses.
The closure can be used in the temperature range from -40 °C to 120 °C. The hardness is 55° shore A.
ND20 - Aluminum flared cap - Butyl molded washer

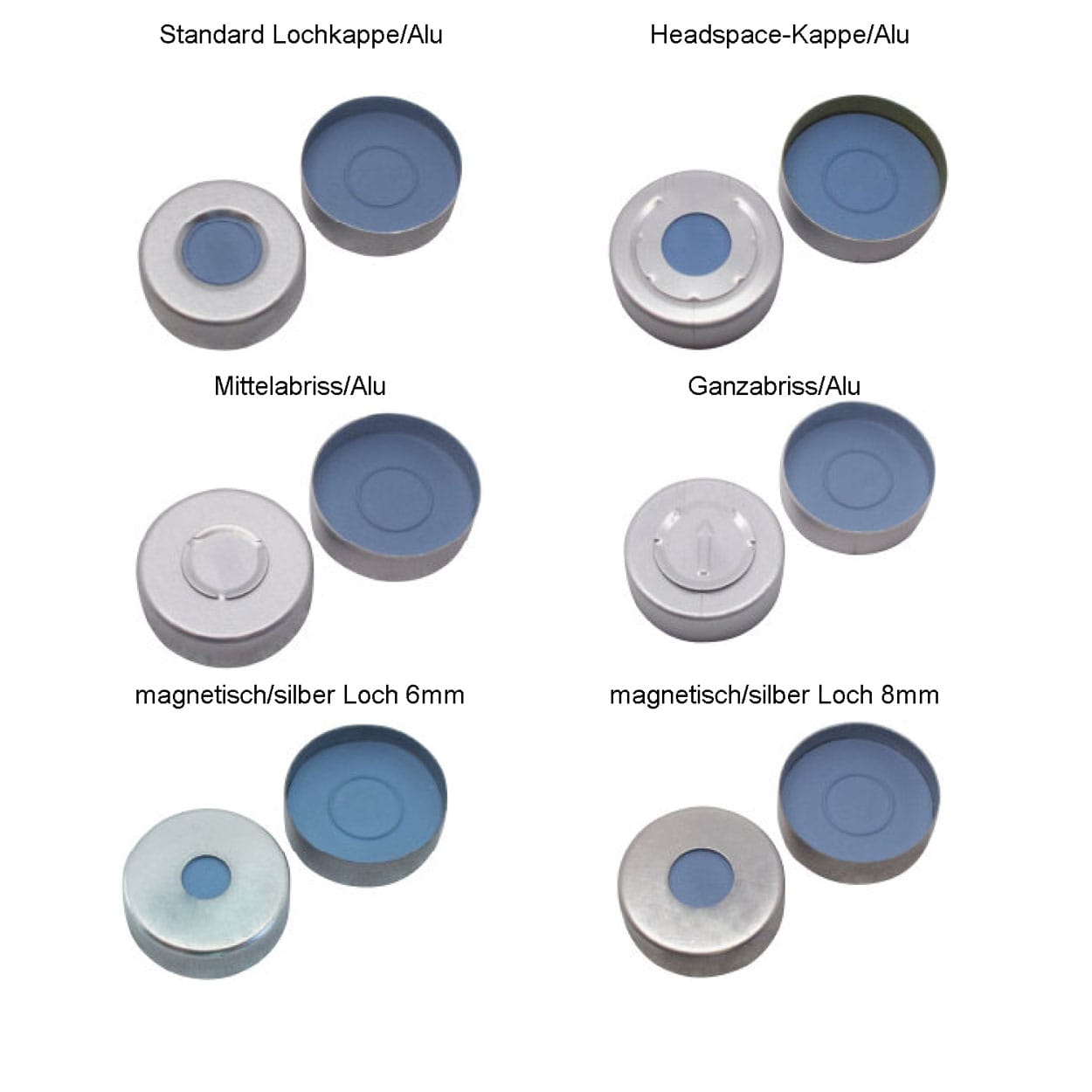

The ND20 closures with an inserted butyl molded washer are available with various crimp caps. In addition to the non-magnetic standard cap ND20, crimp caps are also available for special applications. Medium and full tear-off caps have a tab so that the cap can be removed from the vial without tools. Headspace flare caps have a perforation that opens automatically in the event of dangerous overpressure. Magnetic crimp caps with 6mm and 8mm holes complete the range.
| Item no: | Cap type/color: | Thickness: | Hole-Ø: |
|---|---|---|---|
| 120-0587587 | Standard perforated cap/aluminum | 3.0 mm | 10 mm |
| 120-0647816 | Headspace cap/aluminum | 3.0 mm | |
| 120-0587655 | Center tear-off/aluminum | 3.0 mm | |
| 120-0587662 | All tear-off/aluminum | 3,0 mm | |
| 120-0647823 | magnetic/silver | 3.0 mm | 6 mm |
| 120-0587679 | magnetic/silver | 3.0 mm | 8 mm |

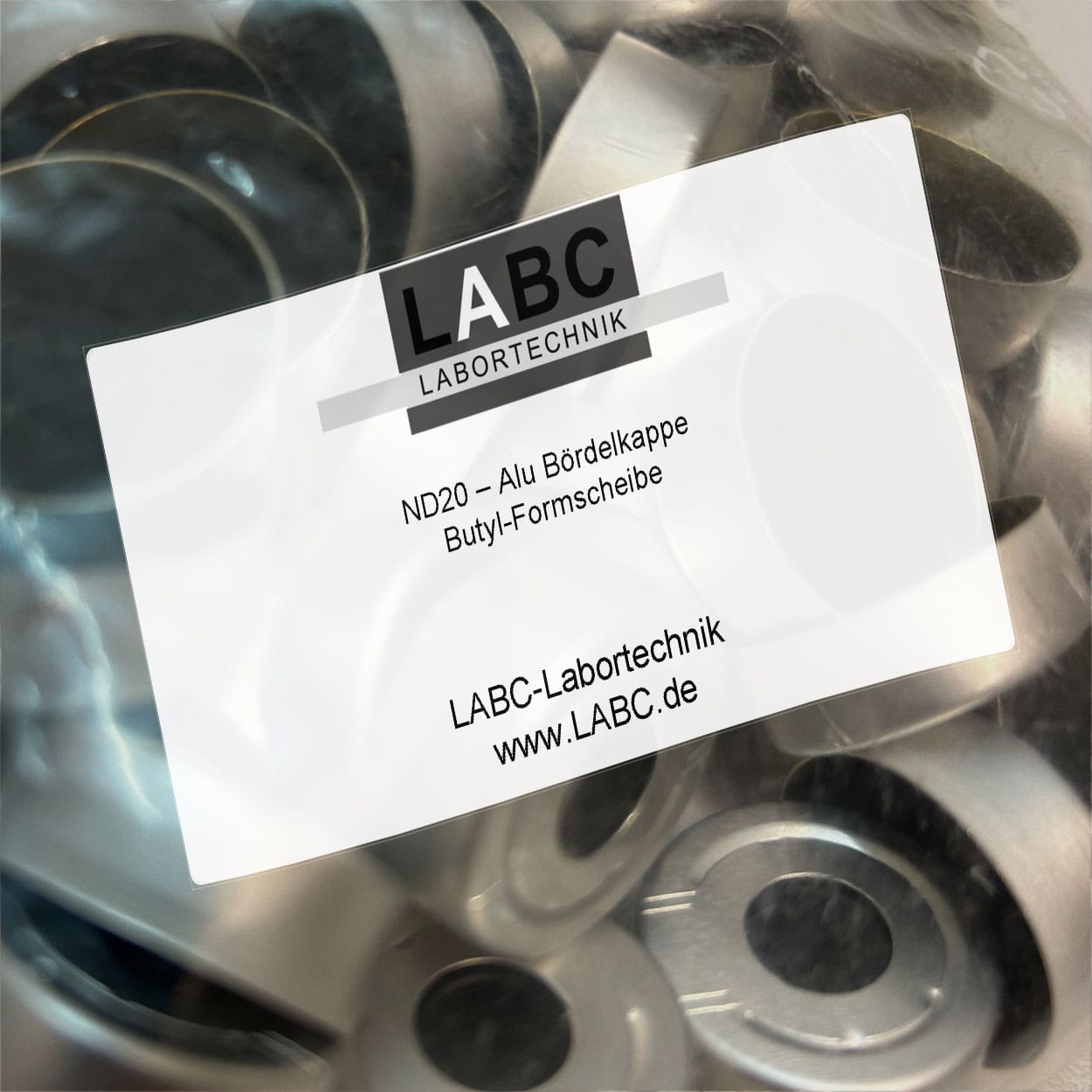

The aluminium flared cap with butyl moulded disc is packed in packs of 100.
