ND11 Alu flare cap – natural rubber/butyl/TEF
The flare closure with a natural rubber/butyl/TEF septum is ideal for multiple injections. The three-layer sandwich disc is easier to pierce than natural rubber/TEF closures. It combines the positive physical properties (resealing properties) with the good chemical properties (purity) and tested instrument manufacturer quality (Agilent quality).
The septum can be considered a successor to the two-layer Butly TEF disc.
Temp. range: -40 °C – 120 °C
45° shore A
ND11 Alu flare cap - natural rubber/butyl/TEF

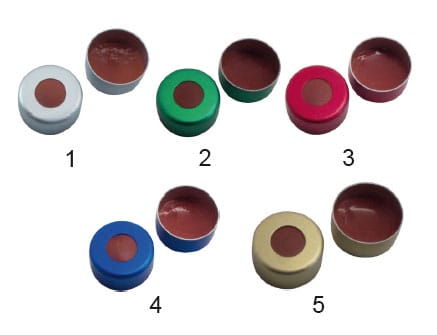

| Item no.: | Color: | Thickness: | Hole-Ø: | Image: |
|---|---|---|---|---|
| 120-0587075 | silver | 1,0 mm | 5,5 mm | 1 |
| 120-0587099 | green | 1,0 mm | 5,5 mm | 2 |
| 120-0587105 | red | 1,0 mm | 5,5 mm | 3 |
| 120-0587112 | blue | 1,0 mm | 5,5 mm | 4 |
| 120-0673983 | gold | 1,0 mm | 5.5 mm | 5 |

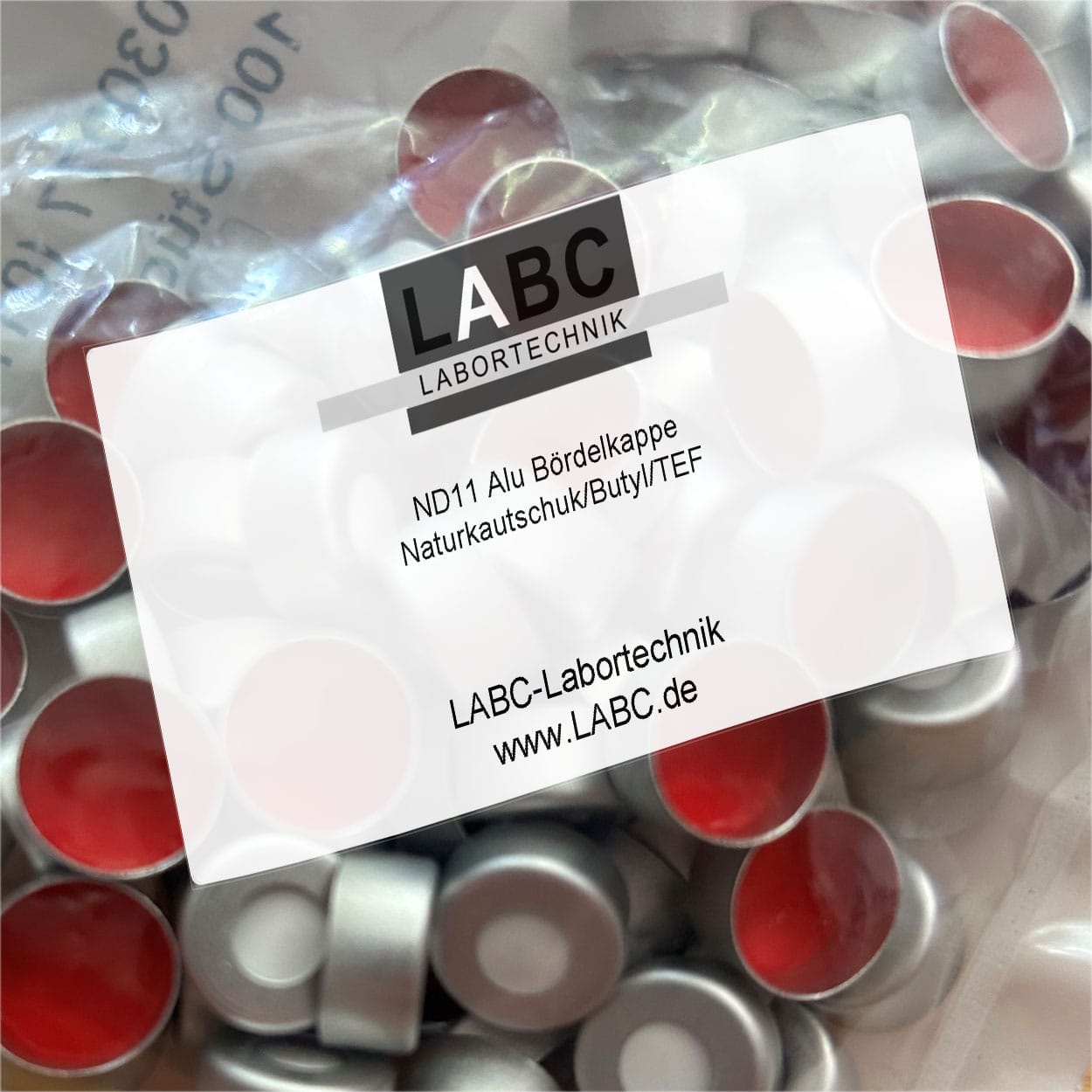

Packed are the caps of 100 pieces in PE bag.
Cross reference list:
| Item no: | LPP |
|---|---|
| 120-0587075 | 11 03 0300 |
| 120-0587099 | 11 03 0301 |
| 120-0587105 | 11 03 0302 |
| 120-0587112 | 11 03 0303 |
| 120-0673983 | 11 03 0304 |
