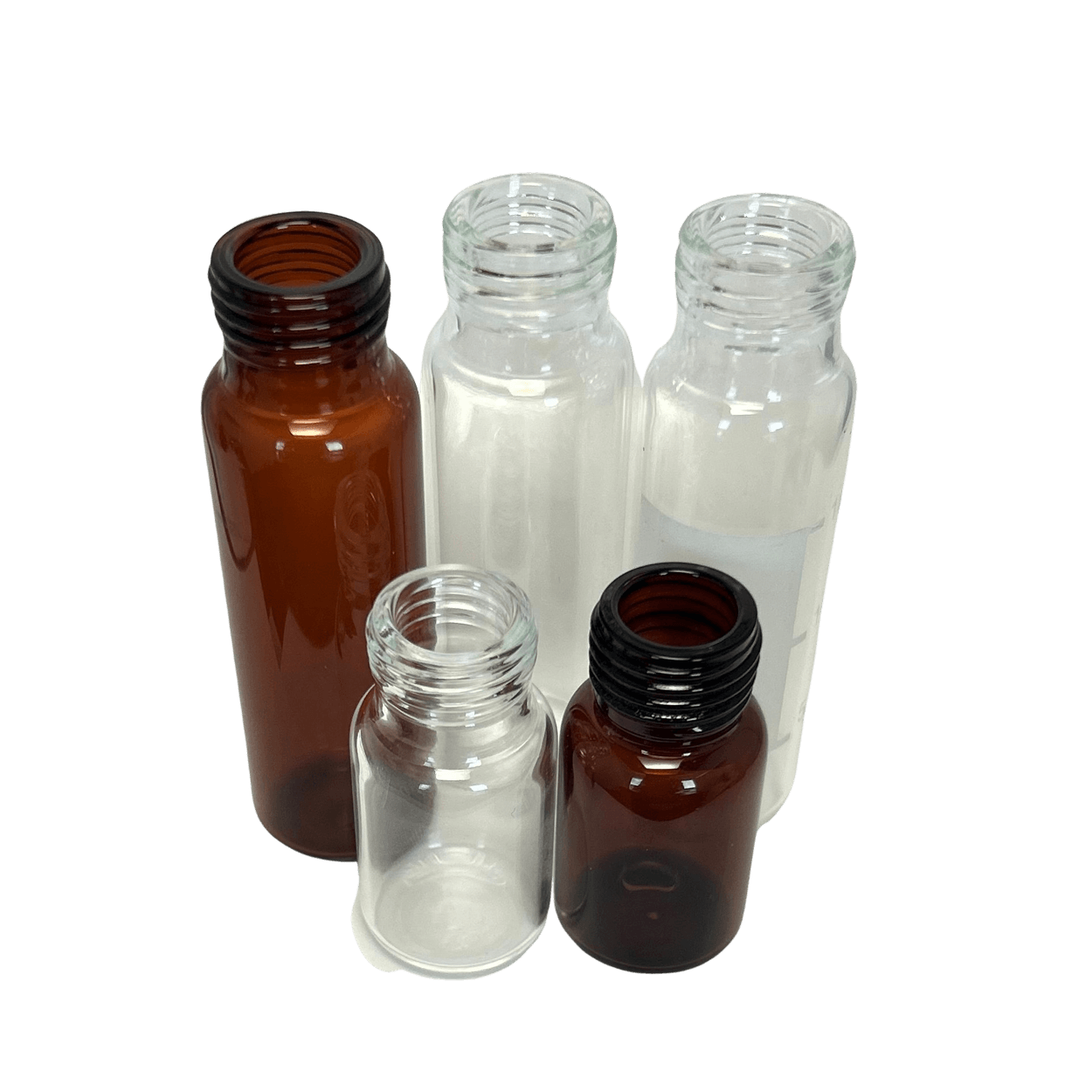

Headspace fine thread vials
Fine thread vials ND18 are intended for headspace analysis. In order to eliminate difficulties and risks of flanging and to reproducibly increase the tightness of the sample bottles, instrument manufacturers strive to keep the sealing process as simple as possible. Therefore, fine thread vials are increasingly being used.

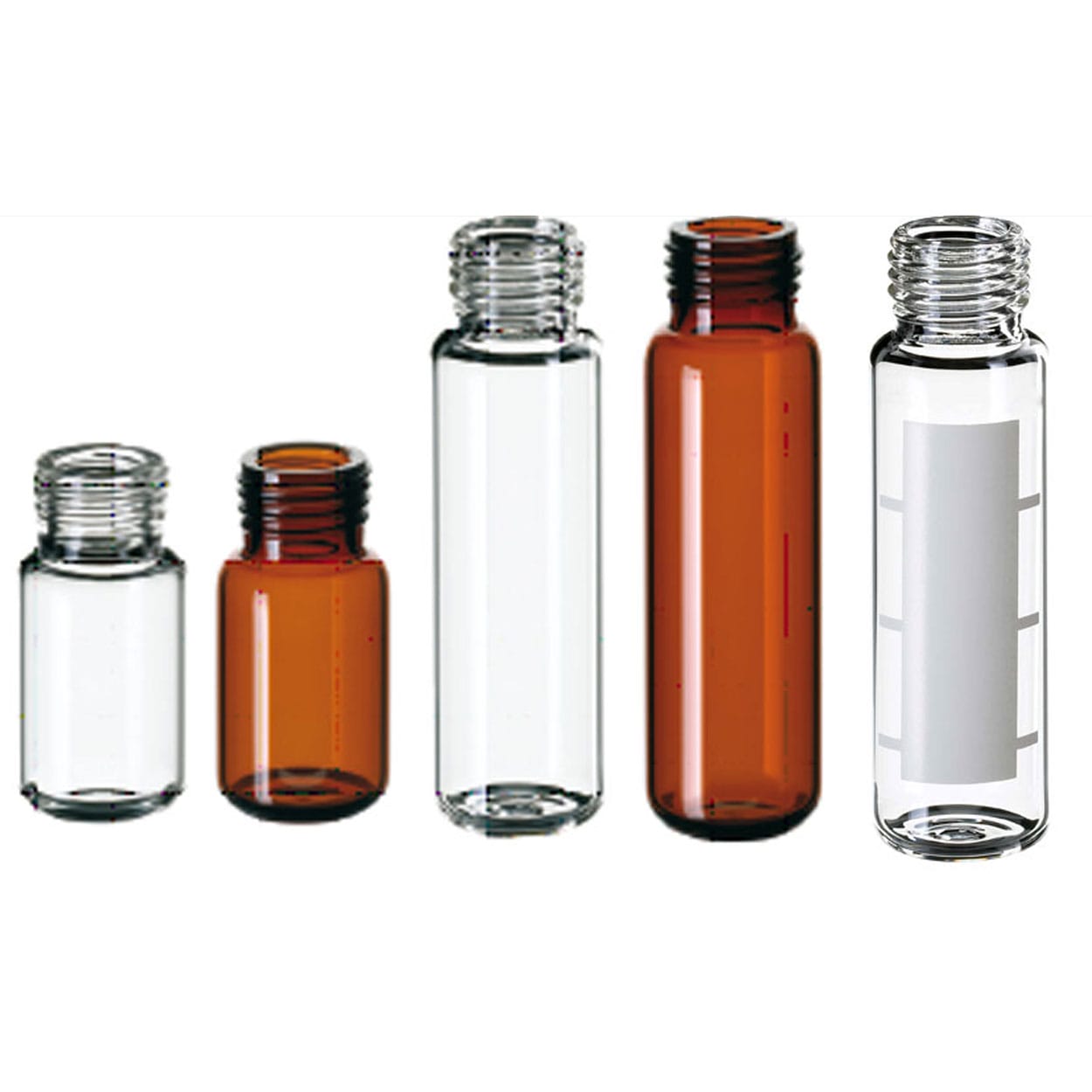

ND18 - Headspace fine thread vials
| Article no. | KG/BG | Volume | Rest | Height | Ø | |
|---|---|---|---|---|---|---|
| 120-0588751 | KG | 10 ml | < 800 | 46 mm | 22,5 mm | 1 |
| 120-0588775 | BG | 10 ml | < 800 | 46 mm | 22,5 mm | 2 |
| 120-0588768 | KG | 20 ml | < 800 | 75,5 mm | 22,5 mm | 3 |
| 120-0588782 | BG | 20 ml | < 800 | 75,5 mm | 22,5 mm | 4 |
| 120-0883160* | KG | 20 ml | < 800 | 75,5 mm | 22,5 mm | 5 |
Packed in 100 vials.
Cross reference list:
| LABC | LPP |
|---|---|
| 120-0588751 | 18 09 1306 |
| 120-0588775 | 18 09 1310 |
| 120-0588768 | 18 09 1307 |
| 120-0588782 | 18 09 1311 |
