Crimped rim vials

Crimped vials, often referred to as rolled rim vials, can be used on all common autosamplers due to their geometry. The rolled rim bottles with ND11 are available in clear glass and amber glass with or without inscription field.

The crimp vials can be used on all common autosamplers. In particular, at Agilent, Carlo Erba, CTC, DANI, Fisons, Gerstel, Jasco, PerkinElmer, Shimadzu, Spark, Thermo Scientific, Varian, Waters®, devices.

We will be happy to advise you on the suitable crimping vials for your device.

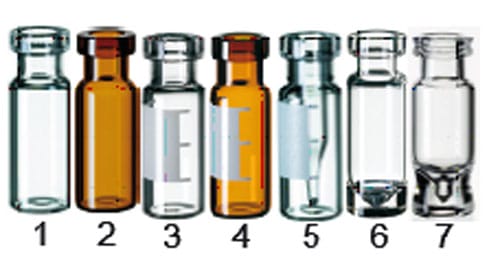

ND11 - rolled rim vials / crimped vials

Item no:	KG/BG:	Volume:	Rest	Height:	Ø:	Special feature:
120-0017565	KG	1,5 ml	< 100 μl	32 mm	12 mm
120-0645775	BG	1,5 ml	< 100 μl	32 mm	12 mm
120-0017602	KG	1,5 ml	< 100 μl	32 mm	12 mm	Title block, fill mark
120-0017619	BG	1,5 ml	< 100 μl	32 mm	12 mm	Title block, fill mark
120-0212311	KG	0.2 ml	< 3 μl	32 mm	12 mm	Title block, fill mark, insert
120-0589345	BG*	0.2 ml	< 3 μl	32 mm	12 mm	Title block, fill mark, insert
120-0589017	KG	1.1 ml	< 15 μl	32 mm	12 mm	Micro
120-0885997	BG*	1,1	< 15 μl	32 mm	12 mm	Micro
120-0590556	KG	0,9	< 3 μl	32 mm	12 mm	Total Micro

*Not shown in the overview
Verpackt sind die Flaschen zu 100 Stück in einer PP-Box

Notice:
IS = Insert “Top Bonded That is, the insert is at the top of the vials
firmly fused with the vial
SF = The vial has a title block
Micro = Best possible emptying
