Chromatography with ZeroSept® by LABC
Overview
LABC-Labortechnik calls its innovative, high-purity, high-quality closures for trace analysis “ZeroSept® closures”. Only absolutely pure septa, i.e. septa that are as free as possible from blank values, receive the “ZeroSept®” designation. The caps fit our standard vials and threads.
Das ZeroSept® AIR-Septum zeichnet sich aus. Es kommt ohne Elastomer aus, hat aber eine vergleichbare Dichtwirkung. Auch bei mehrfacher Penetrierung.
Interference peak-free chromatography with ZeroSept® . As if the needle had never pierced a septum.
ZeroSept® ALUmono-O
ZeroSept® ALUmono-O are closures consisting of a pure aluminium septum. The septum is held in place by an O-ring in the cap. This prevents the cap from falling out and ensures a higher tightness. ZeroSept® ALUmono-O is available in the following variants.
ND11 ZeroSept® ALUmono-O
The 9 mm short thread caps with high-purity, 0.06 mm thick aluminium septum suitable for GC-MS and LC-MS can be easily pierced with a 26 gauge (0.464 mm) needle! A colourless silicone O-ring between the PP cap and aluminium septum ensures 100% tightness.
- No punching out of elastomer septum particles through the syringe needle possible
- for single injection
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0644556 | 0.06 mm | 6 mm | blue |
| 120-0885119 | 0,06 mm | 6 mm | transparent |
ND11 ZeroSept® ALUmono-O
ND11 aluminum crimp cap, painted, with hole and groove (rolling)*, fluoroplastic O-ring** and an aluminum foil as a phthalate-free septum. The cap is designed for high temperatures. Aluminum foil 0.1 mm thick.
*verhindert das Herausfallen des Septums während des Transportes aus der ND11-Kappe!
**optimale Dichtigkeit ohne eine Neueinstellung der Verschließzange!
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0401951 | 1.1 mm | 5.5 mm | colorless lacquered |
PU= 100 pcs. in a screw-top jar with orange lid and PTFE seal. Special sizes not listed are available on request.
ZeroSept® PTFEmono
ZeroSept® PTFEmono are closures consisting of a pure PTFE septum. The thin PTFE film is inserted into the closure in a single layer. It is not held in place by an O-ring and is therefore less leak-proof than mono-O versions. ZeroSept® PTFEmono are available in the following versions. Special sizes not listed are available on request.
ND9 ZeroSept® PTFEmono PP threaded cap
PP screw cap with PTFE film virginal
- Moderate sealing and resealing properties
- only recommended for non-critical HPLC applications
- frequently used at Merck/Hitachi and Waters
| Article no. | Thickness [mm] | Hole Ø [mm] | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0590853 | 0.25 mm | 6 mm | blue | 1 |
| 120-0591065 | 0.25 mm | 6 mm | yellow | 2 |
| 120-0591089 | 0.25 mm | 6 mm | green | 3 |
| 120-0591096 | 0.25 mm | 6 mm | red | 4 |
| 120-0591072 | 0.25 mm | 6 mm | black | 5 |
| 120-0590990 | 0,25 mm | 6 mm | transparent | 6 |
ND9 ZeroSept® PTFEmono PP threaded cap
Magnetic PP screw cap with PTFE foil virginal
- Moderate sealing and resealing properties
- only recommended for non-critical HPLC applications
- for CTC autosampler
- in the design of an aluminum flanged cap; therefore also suitable for robot gripper arms
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0891967 | 0.25 mm | 6 mm | gold |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal

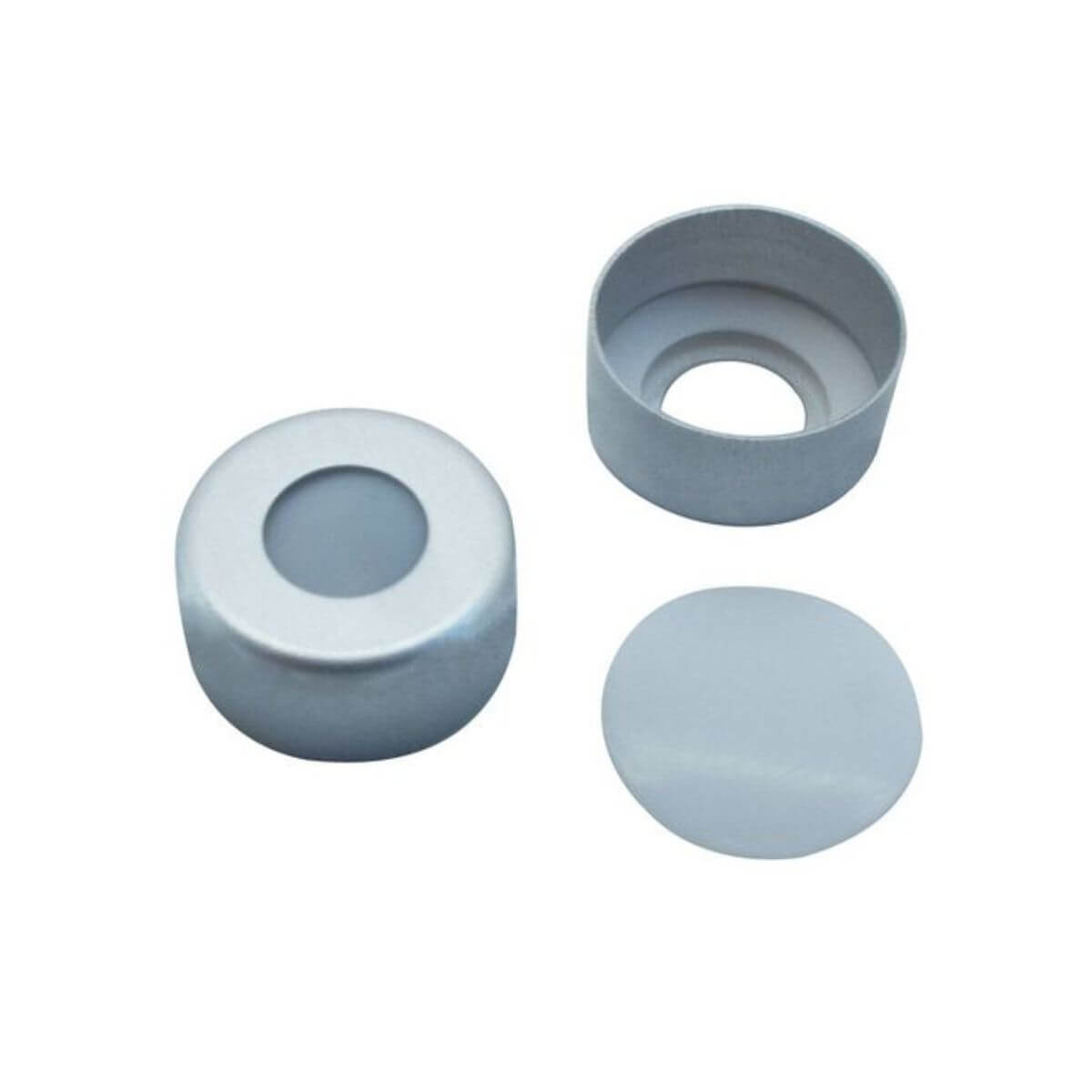

ND11 ZeroSept® PTFE mono-O crimp cap closure
- Very good sealing properties thanks to an additional fluoroplastic O-ring
- phthalate-free closure system
- without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- Suitable for trace analysis
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0587259 | 1.25 mm | 5.5 mm | colorless |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal

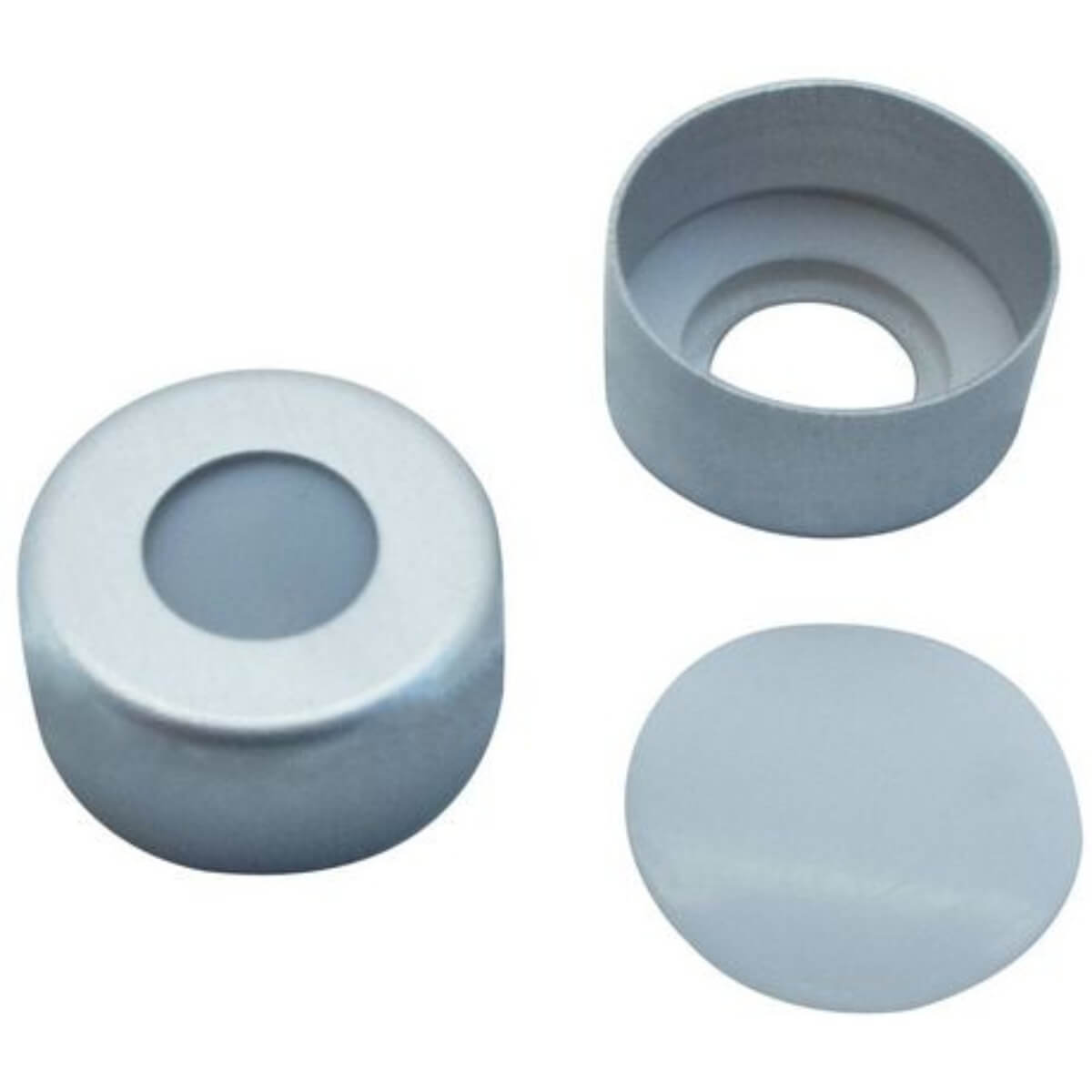

ND11 ZeroSept® PTFE mono-O crimp cap closure magnetic
- Very good sealing properties thanks to an additional fluoroplastic O-ring
- phthalate-free closure system
- without elastomers
- suitable for PAL3, magnetic
- No punching out of elastomer or septum particles by syringe cannula possible
- Suitable for trace analysis
| Article no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0973915 | 1.25 mm | 5.5 mm | colorless |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ZeroSept® AIR
Revolutionary septum for trace analysis with ZeroSept AIR technology
- Interference-free
- made from pure PTFE
- without elastomers and hydrocarbons
- for trace analysis and multiple injections
The new septum seal with an air cushion instead of an elastomer for standard vial closures. Due to its innovative design, the ZeroSept®AIR septum PTFEvirginal/AIR/PTFEvirginal has a high tightness, even with multiple injections! The double PTFE film without elastomer content makes the septum highly pure and very interesting for trace analysis, among other things. In combination with our standard vials, it fits into all common GC/HPLC systems and, in the magnetic version, can also be moved with your autosampler.
Advantages of the ZeroSept®AIR septum:
- the thickness of the ZeroSept®AIR septum is similar to that of a conventional elastomer septum. This means that the flanging tool does not need to be readjusted for rolled edge closures.
- Due to the firm connection of the PTFE foils with the fluoropolymer perforated disk, the inserted ZeroSept®AIR septum does not fall out of the pre-assembled caps during transportation and the smooth, thin foils can no longer be pressed into the sample when piercing with the cannula.
- the syringe needle cannot punch out any elastomer material when piercing the septum and thus possibly contaminate the sample
- the air-filled cavity and two perforated PTFE films significantly reduce the evaporation of solvent and the associated change in concentration of the sample solution in the sample vial. This enables reproducible determinations from the same sample, e.g. within 24-36 hours after the initial injection. (see also the ZeroSept AIR closure leak test)”.
We offer the high-purity ZeroSept®AIR closure as a classic 100-piece pack in a screw-top jar with an orange lid and PTFE seal and also, for example, as a ready-to-use MOSH/MOAH kit consisting of 100 headspace vials and 100 high-purity ZeroSept®AIR ND18 closures.
We have described further information on the use of ZeroSept®AIR ND18 in MOSH/MOAH analysis in a separate report. In addition to MOSH/MOAH analysis, the high-purity and peak-free septa are also used in other analyses.
ND11 ZeroSept®AIR closure
Aluminum flared cap, painted, with roller blind* and PTFEvirginal/AIR/PTFEvirginal septum
*prevents the septum from falling out of the N11 cap during transport!
- Very good sealing properties
- phthalate-free closure system
- made of pure PTFE and without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- for liquid-liquid extractions (e.g. MOSH MOAH)
- Suitable for trace analysis and multiple injections
| Item no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0916639 | 1.2 mm | 5.5 mm | blue | 1 |
| 120-0916608 | 1.2 mm | 5.5 mm | colorless | 2 |
| 120-0916653 | 1.2 mm | 5.5 mm | gold | 3 |
| 120-0916615 | 1.2 mm | 5.5 mm | green | 4 |
| 120-0916622 | 1.2 mm | 5.5 mm | red | 5 |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND18 ZeroSept®AIR closure:
Magnetic fine-thread screw cap made of steel and PTFEvirginal/AIR/PTFEvirginal septum
- Very good sealing properties
- phthalate-free closure system
- made of pure PTFE and without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- for liquid-liquid extractions (e.g. MOSH MOAH)
- Suitable for trace analysis and multiple injections
| Item no. | Thickness | HoleØ | color |
|---|---|---|---|
| 120-0916660 | 2,5 mm | 8 mm | silber |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND20 ZeroSept®AIR closure Alu & magnetic
Aluminum flared cap + magnetic ring and PTFEvirginal/AIR/PTFEvirginal septum
- Very good sealing properties
- phthalate-free closure system
- made of pure PTFE and without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- for liquid-liquid extractions (e.g. MOSH MOAH)
- Suitable for trace analysis and multiple injections
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0916714 | 2.8 mm | 8 mm | blue |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND20 ZeroSept®AIR closure steel flared cap, magnetic
Steel flared cap, magnetic, painted and PTFEvirginal/AIR/PTFEvirginal septum
- Very good sealing properties
- phthalate-free closure system
- made of pure PTFE and without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- for liquid-liquid extractions (e.g. MOSH MOAH)
- Suitable for trace analysis and multiple injections
| Item no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0916691 | 2.5 mm | 6 mm | Steel silver magnetic | 1 |
| 120-0916707 | 2.5 mm | 8 mm | Steel silver magnetic | 2 |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND20 ZeroSept®AIR Closure Aluminum
Aluminum flared cap, painted and PTFEvirginal/AIR/PTFEvirginal septum
- Very good sealing properties
- phthalate-free closure system
- made of pure PTFE and without elastomers
- No punching out of elastomer or septum particles by syringe cannula possible
- for liquid-liquid extractions (e.g. MOSH MOAH)
- Suitable for trace analysis and multiple injections
| Item no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0916677 | 2.5 mm | 10 mm | colorless | 1 |
| 120-0916738 | 2.5 mm | 10 mm | colorless All tear-off | 2 |
| 120-0916721 | 2.5 mm | 10 mm | colorless center tear | 3 |
| 120-0916684 | 2.5 mm | 10 mm | colorless Overpressure protection | 4 |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ZeroSept® FUN
ZeroSept® FUN is designed for interference-free analyses with ND9 short thread vials, among others. As part of the high-purity ZeroSept® range, it is ideally suited for special analyses.
ZeroSept® FUN is characterized by its resealing properties, the very inert and plasticizer-free polypropylene.
ND9 ZeroSept® FUN
- Very good sealing properties
- für Mehrfachinjektionen geeignet
- phthalate-free closure system
- made of pure polypropylene, therefore free from plastic
- No punching out of elastomer or septum particles by syringe cannula possible
- Suitable for trace analysis and multiple injections
- Fits all short thread vials
- Agilent-compatible
| Item no: | Thickness: | Hole-Ø: | Color: |
|---|---|---|---|
| 120-0341325 | 1.7 mm | 6 mm | red |
| 120-0341301 | 1.7 mm | 6 mm | green |
| 120-0341318 | 1.7 mm | 6 mm | blue |
| 120-0341288 | 1.7 mm | 6 mm | black |
| 120-0402712 | 1.7 mm | 6 mm | white |
The ND9 – ZeroSept® FUN closures are packed in 100 pieces in a jar.
ND18 ZeroSept® FUN
- Magnetic
- Very good sealing properties
- Suitable for multiple injections
- phthalate-free closure system
- made of pure polypropylene, therefore free from plastic
- No punching out of elastomer or septum particles by syringe cannula possible
- Suitable for trace analysis and multiple injections
- Suitable for all ND18 fine thread vials
- For headspace analysis
| Item no: | Thickness: | Hole-Ø: | Color: |
|---|---|---|---|
| 120-0967884 | 2.5 mm | 8 mm | silver |
The ND18 – ZeroSept® FUN closures are packed in 100 pieces in a jar.
ZeroSept® FPM/PTFE
ZeroSept® FPM/PTFE combines maximum purity with excellent chemical resistance. The thin PTFE membrane prevents direct contact of Viton/FPM with the sample and thus protects against contamination. Ideal for precise analyses and can be used in a temperature range from -40 °C to 200 °C.
ND18 ZeroSept® FPM/PTFE
- Suitable for vacuum and negative pressure applications
- Magnetic
- Very good sealing properties
- suitable for multiple injections
- Suitable for trace analysis and multiple injections
- Suitable for all ND18 fine thread bottles
- For headspace analysis
| Item no: | Thickness: | Hole-Ø: | Color: |
|---|---|---|---|
| 120-0969246 | 2 mm | 8 mm | silver |
The ND18 – ZeroSept® FPM/PTFE closures are packaged in jars containing 100 pieces.
ZeroSept® SILP
ZeroSept® SILP are high-purity silicone closures. Our silicone is a new and particularly clean mixture and ensures low-interference measurements. The silicone septa are laminated with a PTFE barrier film. With 38° shore, the septum is also very soft. ZeroSept® SILP are available in the following variants. Special sizes not listed are available on request.
ND8 ZeroSept® SILP
ND8 PP threaded cap (thread 8-425) with silicone natural / PTFE colorless (ultra-pure)
- Very soft
- Ideal for inorganic analysis
- Low alkane
- Getempert und aufwendig gewaschen
| Article no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0891059 | 1.2 mm | 5.5 mm | black | 1 |
| 120-0890113 | 1.2 mm | 5.5 mm | white | 2 |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND9 ZeroSept® SILP - short thread closure
ND9 PP short thread cap with natural silicone / colourless PTFE (high purity)
- Very soft
- Ideal for inorganic analysis
- Low alkane
- Getempert und aufwendig gewaschen
| Item no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0891028 | 1.2 mm | 6 mm | blue | 1 |
| 120-0916257 | 1.2 mm | 6 mm | yellow | 2 |
| 120-0891035 | 1.2 mm | 6 mm | green | 3 |
| 120-0916226 | 1.2 mm | 6 mm | red | 4 |
| 120-0916233 | 1.2 mm | 6 mm | black | 5 |
| 120-0890106 | 1.2 mm | 6 mm | transparent | 6 |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND9 ZeroSept® SILP magnetic closure
ND9 PP short threaded cap, magnetic, with silicone natural /PTFE colorless (ultra-pure)
- very soft
- Ideal for inorganic analysis
- Low in alcohol
- tempered and elaborately washed
- for CTC autosampler
- in the design of an aluminum flanged cap; therefore also suitable for robot gripper arms
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0891080 | 1.2 mm | 6 mm | gold |
ND11 ZeroSept® SILP closure
ND11 aluminum flared cap, painted, with natural silicone /PTFE colorless (ultra-pure)
- very soft
- Ideal for inorganic analysis
- Low in alcohol
- tempered and elaborately washed
- for CTC autosampler
| Item no. | Thickness | HoleØ | Color (cap) | Picture |
|---|---|---|---|---|
| 120-0916141 | 1.2 mm | 5.5 mm | blue | 1 |
| 120-0890090 | 1.2 mm | 5.5 mm | colorless | 2 |
| 120-0916158 | 1.2 mm | 5.5 mm | gold | 3 |
| 120-0916127 | 1.2 mm | 5.5 mm | green | 4 |
| 120-0916134 | 1.2 mm | 5.5 mm | red | 5 |
ND20 ZeroSept® SILP - Heaspace closure
ND20 flared cap with silicone natural /PTFE colorless (ultra-pure)
- very soft
- Ideal for inorganic analysis
- Low in alcohol
- tempered and elaborately washed
- HT quality
- 38° Shore
- Temperature range -60 °C to +200 °C
| Item no. | Thickness | HoleØ | Cap type |
|---|---|---|---|
| 120-0891073 | 3.2 mm | 10 mm | Standard perforated cap/aluminum |
| 120-0891622 | 3.2 mm | Headspace cap/aluminum | |
| 120-0891615 | 3.2 mm | 8 mm | magnetic, bimetal/blue |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
ND24 ZeroSept® SILP EPA closure
ND24 PP EPA screw cap with silicone natural /PTFE colorless (ultra-pure)
- very soft
- Ideal for inorganic analysis
- Low in alcohol
- Tempered and elaborately washed
- for EPA vials
| Item no. | Thickness | HoleØ | Color (cap) |
|---|---|---|---|
| 120-0591515 | 3 mm | without | white |
| 120-0891097 | 3 mm | 12 mm | white |
PU= 100 pcs. in a screw-top jar with orange lid with PTFE seal
