Short thread vials
Short thread vials are ideal for all common autosamplers, preferred by Agilent, HTA, Shimadzu, Thermo Scientific, Varian, Waters®.
They have the standard size of 12x32mm and a filling volume of up to 2ml. The specifications of the dimensions and filling volume of a Short thread vial are not standardized and differ depending on the manufacturer. Thus, the filling volume of the Short thread vial can also be specified with 1.5ml or with 1.8ml. The same applies to the dimensions.
Short thread vials are 100 pieces in a PP box and are packed in clean room class 10,000. The quality of the vials is checked visually. Vial and cap kits can be offered on request. Pre-rinsed vials or with a certificate of purity can also be offered.

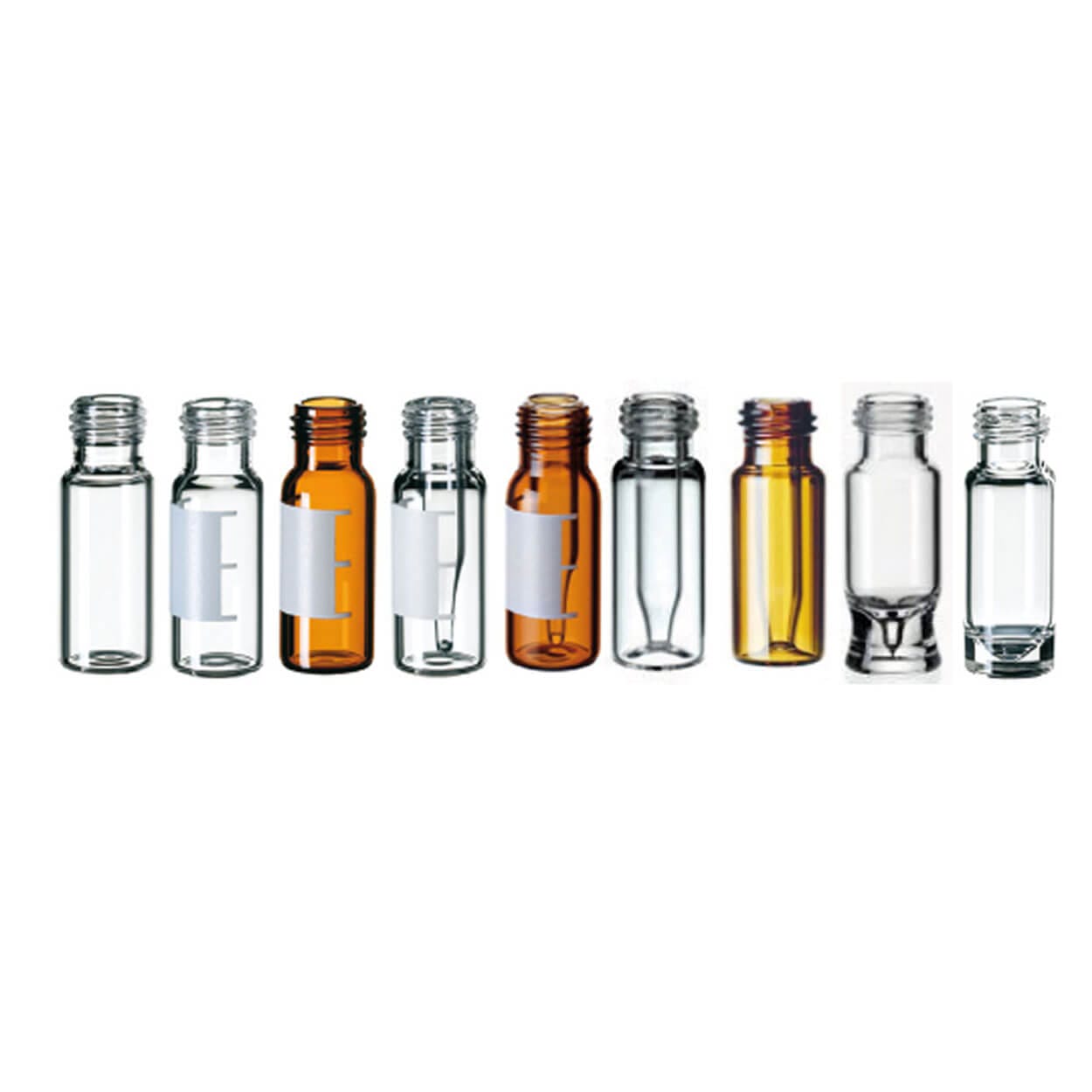

ND9 - Short thread bottle overview
| Item no: | KG/BG: | Volume: | Rest | Height: | Ø: | Special feature: |
|---|---|---|---|---|---|---|
| 120-0588973 | KG | 1,5 ml | < 120 μl | 32 mm | 12 mm | |
| 120-0588980 | KG | 1,5 ml | < 120 μl | 32 mm | 12 mm | Title block, fill mark |
| 120-0588966 | BG | 1,5 ml | < 120 μl | 32 mm | 12 mm | Title block, fill mark |
| 120-0588997 | KG | 0.2 ml | < 1 μl | 32 mm | 12 mm | with integrated 0.2 ml micro insert, labelling field, filling marking |
| 120-0589000 | BG | 0.2 ml | < 1 μl | 32 mm | 12 mm | with integrated 0.2 ml micro insert, labelling field, filling marking |
| 120-0589031 | KG | 0,3 ml | < 1 μl | 32 mm | 12 mm | with integrated 0.3 ml micro insert, “Base Bonded |
| 120-0884914 | BG | 0,3 ml | < 3 μl | 32 mm | 12 mm | with integrated 0.3 ml micro insert, “Base Bonded |
| 120-0589048 | KG | 0,9 ml | < 1 μl | 32 mm | 12 mm | Total Microliter Short thread vial |
| 120-0738545 | KG | 1.1 ml | < 15 μl | 32 mm | 12 mm | Microliter Short thread vial |
| 120-0884969 | BG | 1.1 ml | <15 μl | 32 mm | 12 mm | Microliter Short thread vial (not shown above) |
