ND9 PP- Screw hole cap – PTFE/Silicone/PTFE
The short thread cap with a red/white/red disc is its PTFE-coated silicone disc, ideal for precise analysis. The double-sided coating minimizes particle formation and enables use in a wide temperature range from -60 °C to 200 °C.
With a Shore hardness of 45° A, it offers the elasticity required for a wide range of applications. The short threaded cap with hole fits all ND9 vials and is compatible with autosamplers and GC / HPLC instruments.

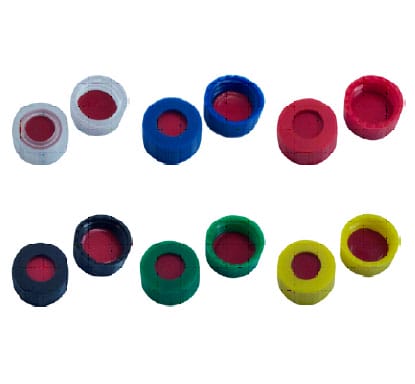

ND9 PP- Screw hole cap PTFE/Silicone/PTFE (red/white/red)
| Art. no.: | Cap colour: | Thickness: | Hole-Ø: | alternative to |
|---|---|---|---|---|
| 120-0590891 | transparent | 1.0 mm | 6 mm | 09 15 0480 |
| 120-0590747 | blue | 1.0 mm | 6 mm | 09 15 0868 |
| 120-0590921 | red | 1.0 mm | 6 mm | 09 15 1177 |
| 120-0590778 | black | 1,0 mm | 6 mm | 09 15 1571 |
| 120-0590945 | green | 1.0 mm | 6 mm | 09 15 1485 |
| 120-0590969 | yellow | 1.0 mm | 6 mm | 09 15 1486 |
