Headspace crimp vials

Crimped vials with ND20 are mainly used in headspace analysis. Depending on the closure, the sample containers can be moved with an autosampler. Versatile closures are available for the ND20 headspace vials.

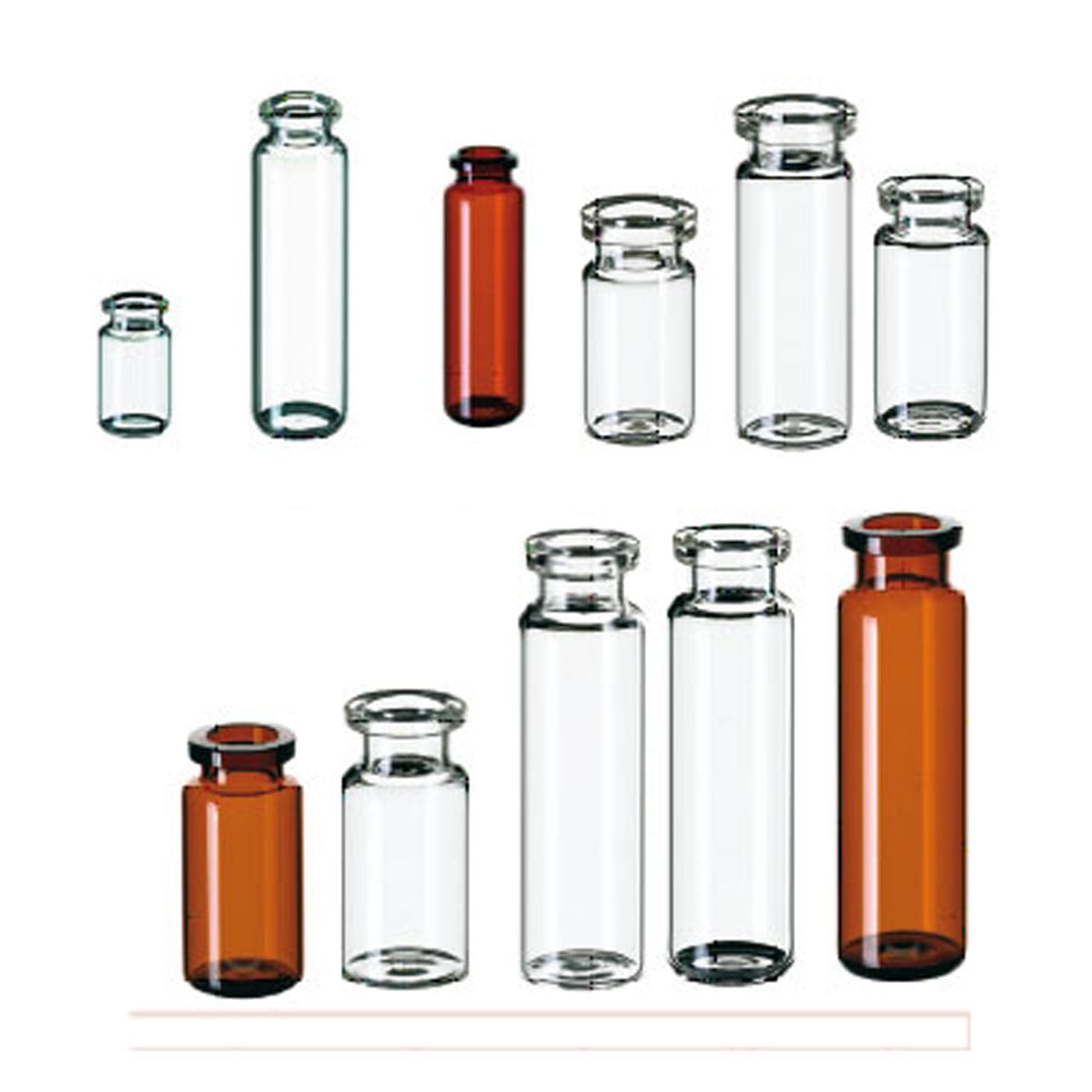

ND20 - Headspace crimp bottles

Article no. KG/BG Bottom/crimp Volume Rest Height Ø Remark
120-0588843 KG rounded/HS 5 ml 800 µl 38.2 mm 22 mm PerkinElmer 1
120-0588850 KG rounded/HS 20 ml 800 µl 75,5 mm 23 mm PerkinElmer,Tekmar 2
120-0588898 BG rounded/HS 20 ml 800 µl 75,5 mm 23 mm PerkinElmer,Tekmar 3
120-0647809 KG rounded/HS/font 20 ml 800 µl 75,5 mm 23 mm PerkinElmer,Tekmar
120-0588928 KG flat/DIN 8 ml 800 µl 38 mm 20 mm Varian 4
120-0588935 KG flat/DIN 12 ml 800 µl 54.5 mm 20 mm Varian 5
120-0588867 KG rounded/DIN 12 ml 800 µl 46 mm 22,5 mm Carlo Erba, CTC, Fisons,Varian(CP) 6
120-0588874 BG rounded/DIN 12 ml 800 µl 46 mm 22,5 mm Carlo Erba, CTC, Fisons,Varian(CP) 7
120-0588812 KG flat/DIN 10 ml 800 µl 46 mm 22,5 mm Carlo Erba, Dani, Fisons, Agilent 8
120-0645898 BG flat/DIN 10 ml 800 µl 46 mm 22,5 mm Carlo Erba, Dani, Fisons, Agilent
120-0588829 KG flat/DIN 20 ml 800 µl 75,5 mm 22,5 mm Carlo Erba, Dani, Fisons, Agilent 9
120-0645942 BG flat/DIN 20 ml 800 µl 75,5 mm 22,5 mm Carlo Erba, Dani, Fisons, Agilent
120-0592024 KG rounded/DIN 20 ml 800 µl 75,5 mm 22,5 mm CTC PAL (Varian, Gerstel, Shimadzu, TriPlusHS) 10
120-0588881 BG rounded/DIN 20 ml 800 µl 75,5 mm 22,5 mm CTC PAL (Varian, Gerstel, Shimadzu, TriPlusHS) 11

Cross reference list

Article no. LPP
120-0588843 20 09 0342
120-0588850 20 09 0297
120-0588898 20 09 1223
120-0647809
120-0588928 20 09 0801
120-0588935 20 09 0802
120-0588867 20 09 1405
120-0588874 20 09 1691
120-0588812 20 09 0795
120-0645898
120-0588829 20 09 0796
120-0645942
120-0592024
120-0588881 20 09 1690
